Water Treatment System
1500L double stage water treatment system Configuration list Number Name Model Material Unit Quantity 1
Product Introduction

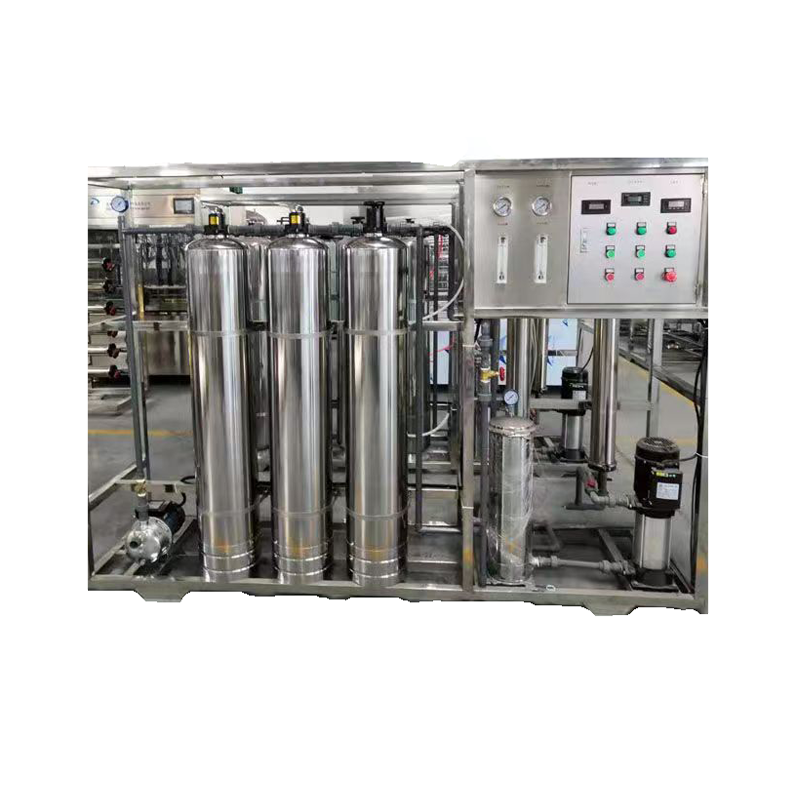

1500L double stage water treatment system
|
Configuration list |
|||||
|
Number |
Name |
Model |
Material |
Unit |
Quantity |
|
1 |
Frame |
2600*1000*1700m m |
Sus304 |
Set |
1 |
|
2 |
Raw water booster pump |
CHL4-40 |
sus304 |
Set |
1 |
|
3 |
Multimedia filtration |
Φ400 |
sus304 |
Pcs |
1 |
|
4 |
Activated carbon filtration |
Φ400 |
sus304 |
Pcs |
1 |
|
5 |
Softening filtration |
Φ400 |
sus304 |
Pcs |
1 |
|
6 |
Precision filter |
5cores 20 inches |
Sus304 |
Pcs |
1 |
|
7 |
Precision filter element |
5 μm |
PPM |
Pcs |
5 |
|
8 |
Primary high pressure pump |
CDL4-160 |
sus304 |
Set |
1 |
|
9 |
Two-stage high pressure pump |
CDL2-130 |
sus304 |
Set |
1 |
|
9 |
Membranous shel1 |
4040 |
sus304 |
Pcs |
8 |
|
10 |
R0 membrane |
4040 |
nanomaterials |
Pcs |
16 |
|
11 |
flowmeter |
10—20callon |
plexiglass |
Pcs |
4 |
|
12 |
manometer |
10—30kg |
Shock-proof oiling |
Pcs |
4 |
|
13 |
Conduct meter |
CCT-3320V |
PE |
Pcs |
2 |
|
14 |
Distribution system |
220V—380V |
PE |
Set |
1 |
|
15 |
Main engine connection pipe |
1.6Mp |
PVC |
Pcs |
1 |
|
16 |
High and low pressure protection |
220—0.1Mpa |
PE |
Set |
1 |
|
17 |
Pressure regulating valve |
Φ32 |
Orichalcum |
Pcs |
1 |
|
18 |
Inlet and outlet solenoid valve |
220V—1.5Mpa |
Orichalcum |
Pcs |
2 |
|
19 |
Control valve |
10T（Automatic control） |
PE |
Set |
3 |
