3 In 1 Water Rinsing Filling Capping Line
1.HF8-8-3 cleaning, filling, capping three-in-one filling machine Suitable for PET bottles and screw cap, can be used to fill purified water, juice etc. Filling at room temperature. 1.1 Bottle capacity range 200--1500ml Bottle diameter range: &ph
Product Introduction

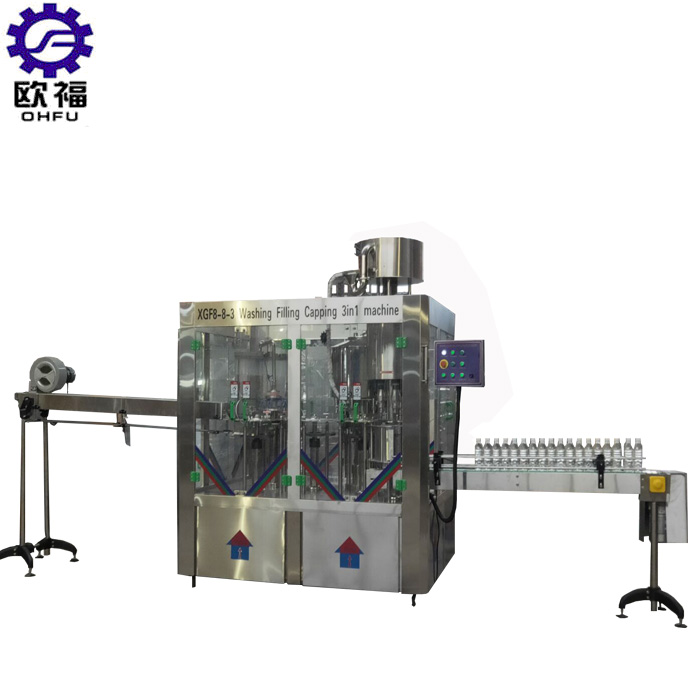

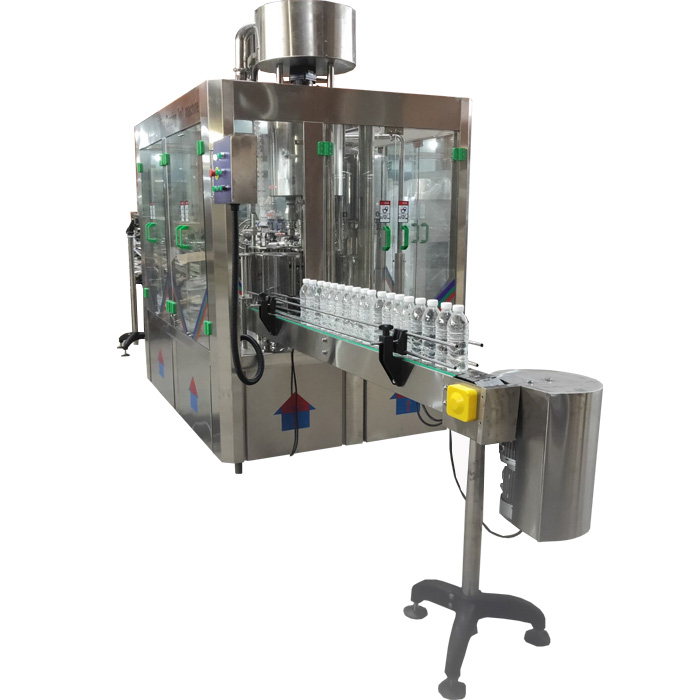

1.HF8-8-3 cleaning, filling, capping three-in-one filling machine
Suitable for PET bottles and screw cap, can be used to fill purified water, juice etc. Filling at room temperature.
1.1 Bottle capacity range 200--1500ml
Bottle diameter range: φ50—φ92mm
Bottle height range: 140--330mm
Bottleneck inner diameter: φ20--φ30mm
1.2 Specifications:
X ---- cleaning
G ---- filling
F ---- Gland
The model is: HF 8/8/3
1.3 Machine composition and structure introduction
Components - (cleaning) - filling)
——(gland) ——(air delivery)
Host part ——(electric) ——(electric box)
——(workbench) ——(transmission device)
——(chain box and import and export arc plate) ——(frame)
1.4 Technical features:
Filling head: 8
Capping head: 3
Cleaning head: 8
Output: 500ml 3000 bottles/hour
1000ml 1500 bottles/hour
1250ml 1200 bottles/hour
It is suitable for bottles of different capacities, and there is no need to change the mold when the neck of the bottle is the same.
1.5 Input power:
Host power: 1.5KW, cleaning pump: 0.37kw
Filling pump: 0.37kw, cap unscrambler: 0.37kw
Blower: 1.1kw, conveyor line motor: 0.37kw
Working voltage AC: 380V 50HZ, 3-phase power
1.6 Water consumption: (sterile water) ≈ 1 cubic meter/hour
Water pressure: 0.2-0.4 Pa
1.7 Dimensions: LxWxH 2000x1500x2000mm
Machine weight ≈1800Kg
1.8 The machine contains 2 meters of air duct and 2 meters of conveyor and 1 unit feed capping
Please feel free contact us directly for any questions
Need food and packing produce line suggestion? you are more than welcomed to leave your contact info and we will be in touch shortly.
