Automatic 3 In 1 Beverage Rinsing Filling Capping Line
The process of Beverage with Co2 filling Empty bottle→Convey→Flush and drain inside and outside of the handstand→Inflation valve（Counter press）→Filling→Capping
Product Introduction
The process of Beverage with Co2 filling
Empty bottle→Convey→Flush and drain inside and outside of the handstand→Inflation valve（Counter press）→Filling→Capping
- Guardrail conveyor line 2M
- Washing heads：8 pcs
- Filling heads：8 Pcs
- Capping Head：3 pcs
- Washing pump：1 pc
- Filling pump：1 pc
- Main motor：1 pc
- Rear conveyor line 4M（material 304SS,Complete set with guardrail support）
304 stainless steel is used for the parts of the whole machine that are in contact with materials

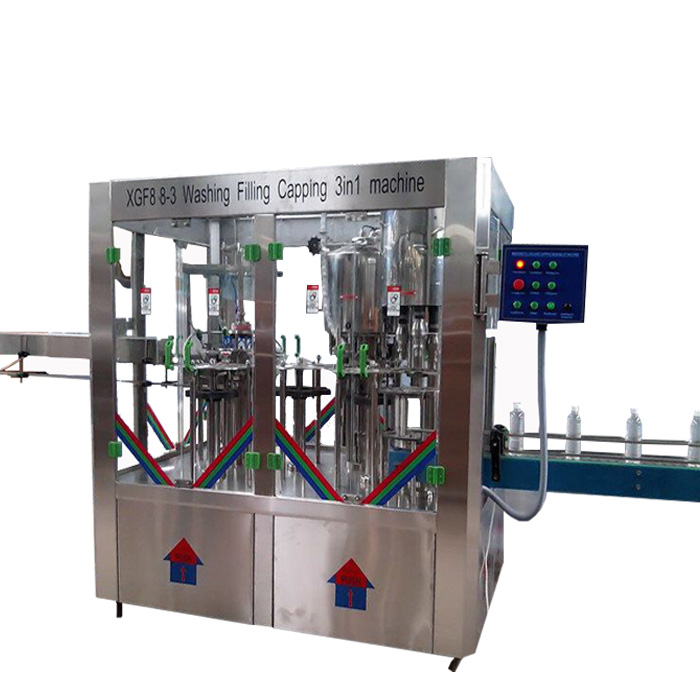

- HF 8-8-3 washing filling capping 3 in 1
It is suitable for round and special-shaped PET bottles and glass bottles and can be used to fill all kinds of carbonator drinks
1.1 Bottle capacity range 200-2000ML.
Bottle diameter range: φ40—φ92mm
Bottle Height range:140--330mm
Bottle neck diameter: φ20--φ30mm
1.2Input power
Main motor power: 2.2KW , washing pump power:0.37kw
Filling pump power:0.55kw, Cover adjuster power:0.25kw
Blower power: 0.75kw, Convey power: 0.75kw
Voltage: AC: 380V 50HZ, three phase
1.3 water consumption: (Sterile water) ≈ 1 cubic metre per hour（can be adjusted）
hydraulic pressure:0.2-0.4 mpa
1.4 Dimension: 2100*1500*2300mm
Weight: ≈1800Kg
Package dimension: 2250*1630*2200mm
2170*460*580mm
